Indoor Fine Pitch LED Display

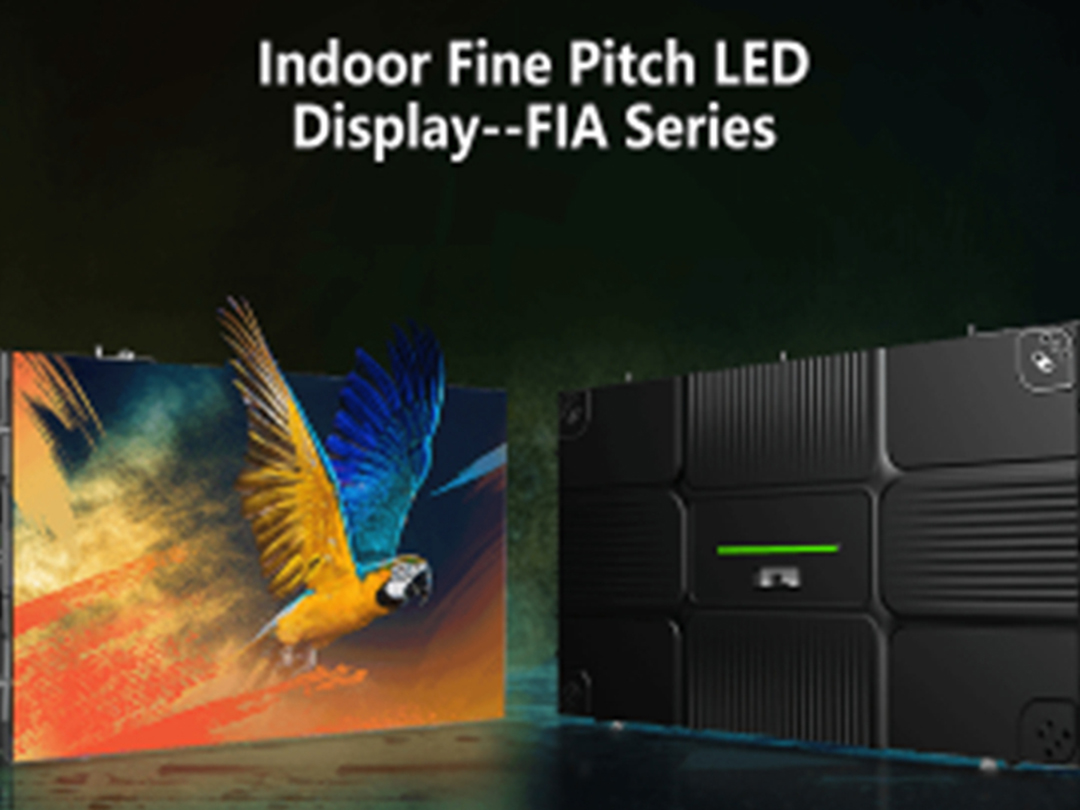

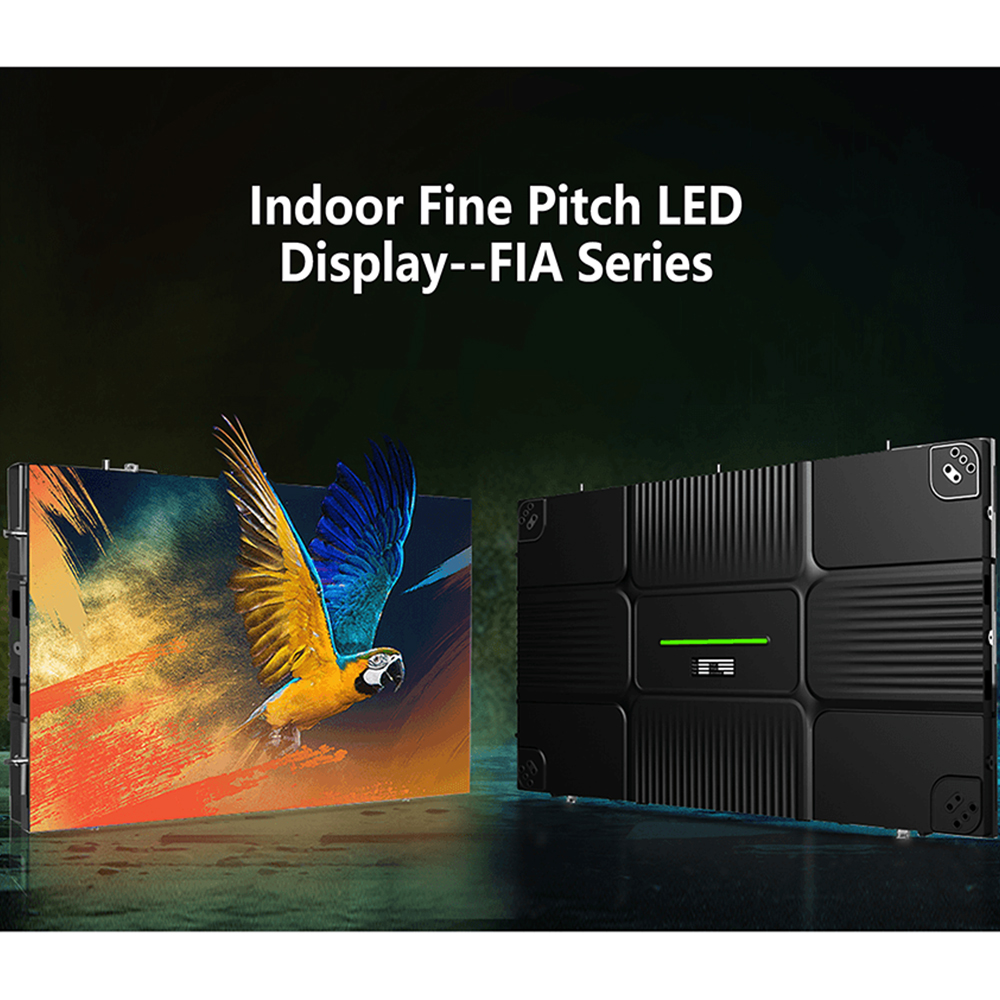

Indoor Fine Pitch LED Display–FIA Series

Name	Indoor Fine Pitch FIA series led display
Pixel Pitch	P1.25/P1.56/P1.875/P2.5
Cabinet Size	600337.533mm
Cabinet Material	Die casitng Aluminum
Cabinet weight	4.5kgs
Brightness	500-600 nits
Refresh Rate	3840
Maintenance Way	Front Access
Certification	CE, FCC, ROHS, ISO

Product Key Points

Enhance Your Indoor Visual Experience with HAFOND FIA Series Indoor LED Displays

The HAFOND FIA Series Indoor LED Display can make presentations visual clearer, bringing high-definition picture quality and eye-catching colors to the indoor space, along with an immersive experience up close. Whether in retail stores, government and corporate lobbies, museums, airports, hospitals, or industrial control rooms, the Indoor LED Display can provide a better visual experience with its high resolution.

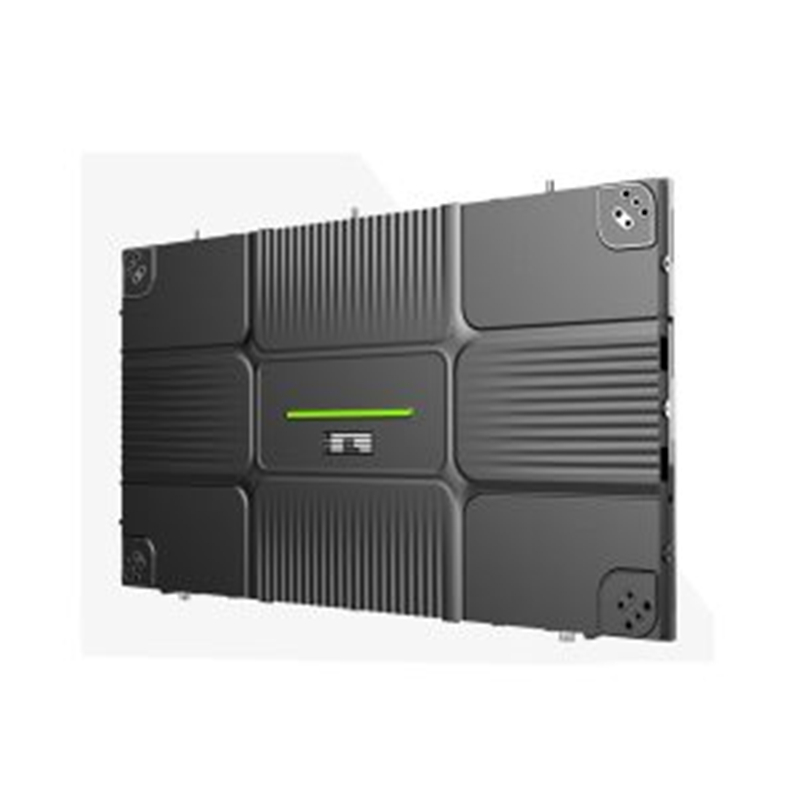

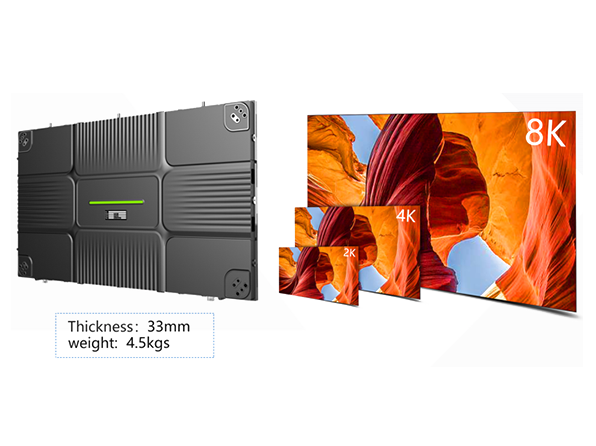

Ultra-Thin and Lightweight Cabinet:

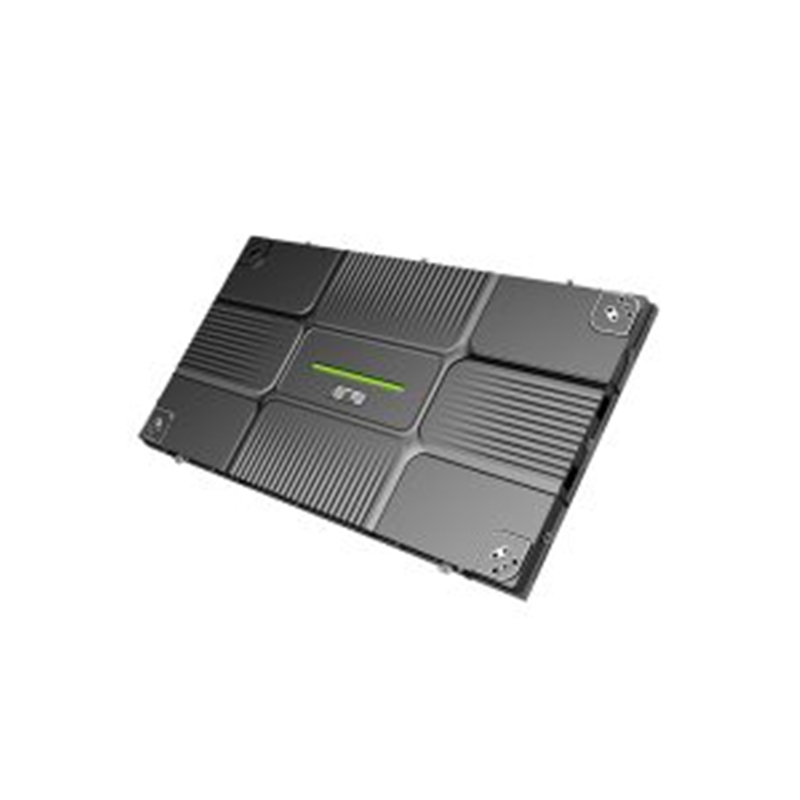

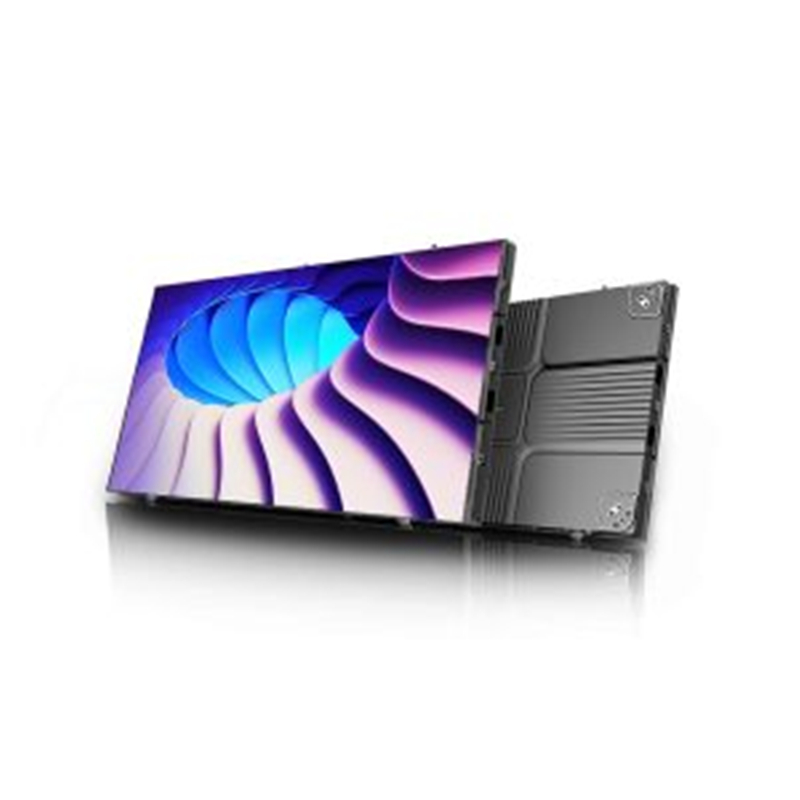

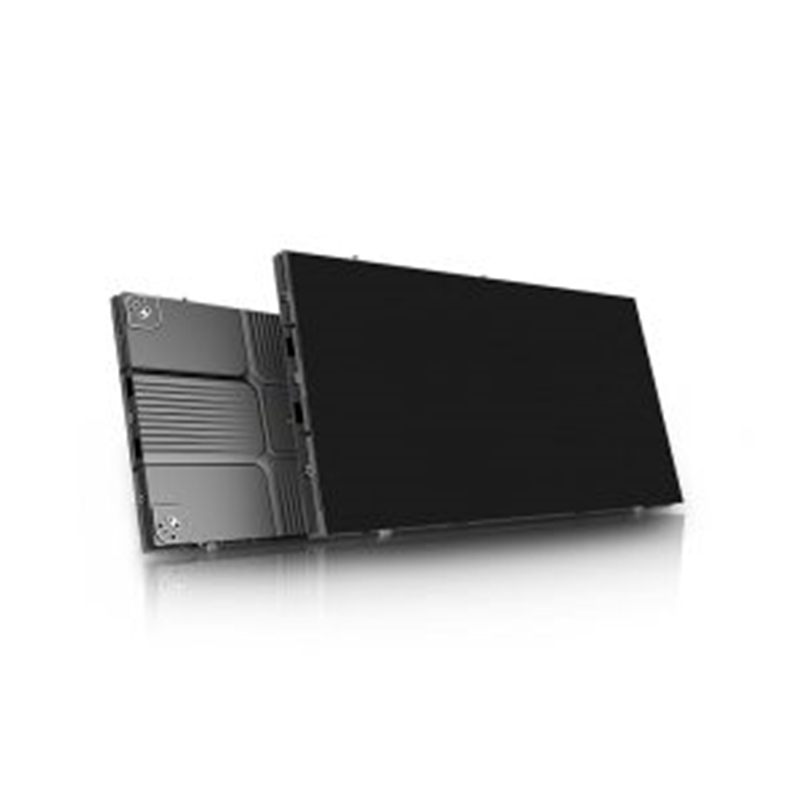

The FIA Series Indoor LED Displays feature a die-casting aluminum cabinet with a thickness of only 33mm and a weight of just4 .5kg. The cabinet size is 600mm × 337.5mm, maintaining a 16:9 aspect ratio for optimal visual proportions. This design not only enhances the aesthetics of the Indoor LED Displays but also makes them suitable for various indoor environments.

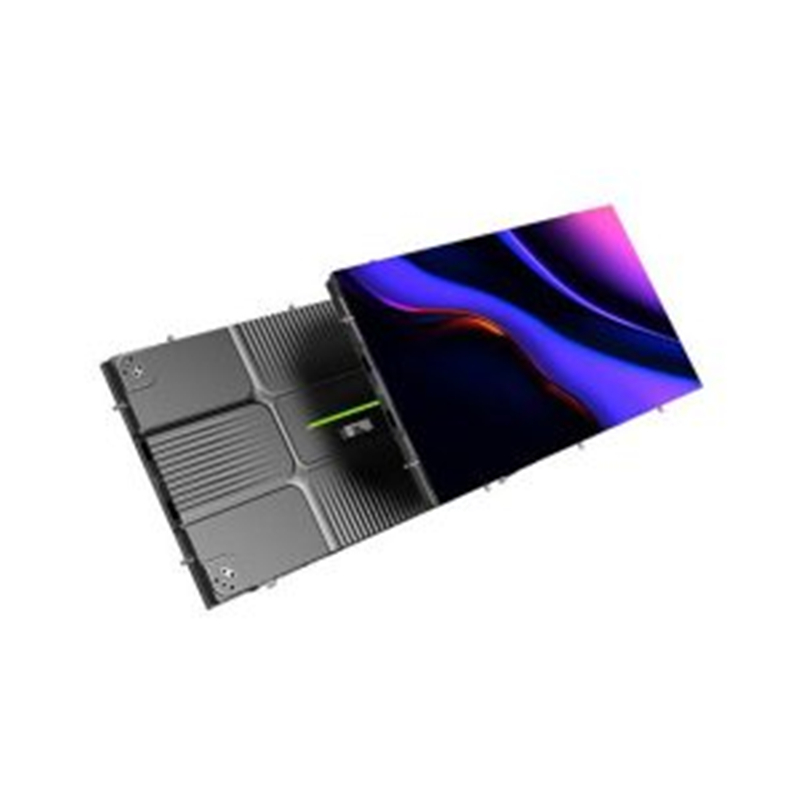

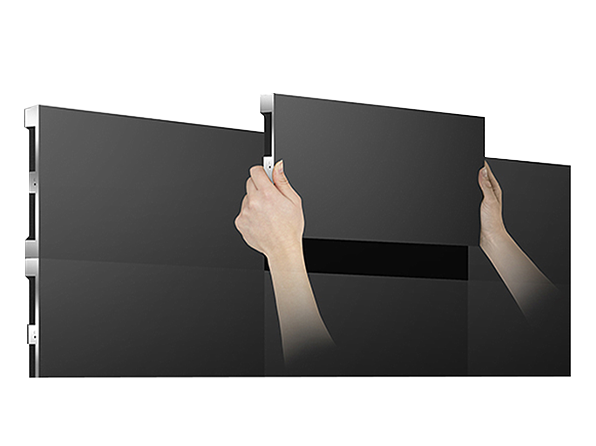

Fully Front Accessible:

All components are designed for front access, simplifying maintenance and reducing downtime. This design eliminates the need for rear maintenance space, making it extremely convenient for daily operations and maintenance, especially in space-limited scenarios for Indoor LED Displays.

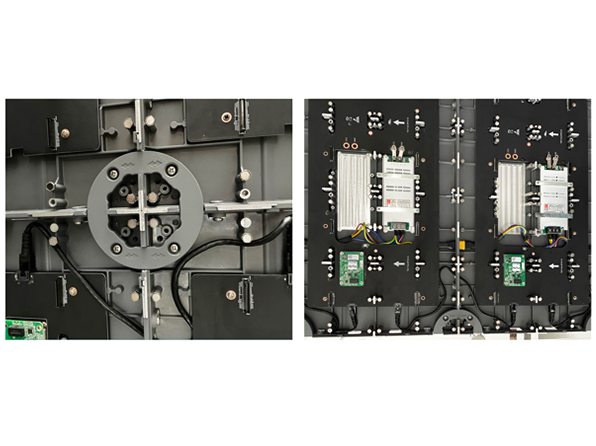

Aesthetic and Practical Cabinet Design:

Internal locking mechanisms allow for seamless splicing of the Indoor LED Display cabinets, enabling quick and tight assembly. The cable-less design eliminates the clutter of traditional cables, enhancing the overall visual appeal of the Indoor LED Displays.

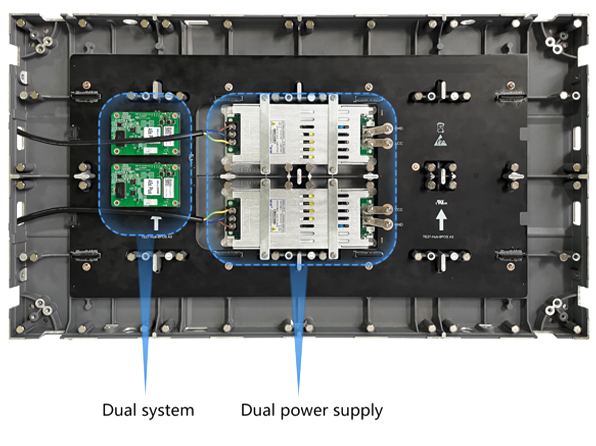

Signal and Power Redundancy:

The FIA Series Indoor LED Displays come with an additional controller and power unit, providing dual backup support to prevent screen blackouts and ensure stable operation. This is crucial for Indoor LED Displays that require long-term, uninterrupted performance.

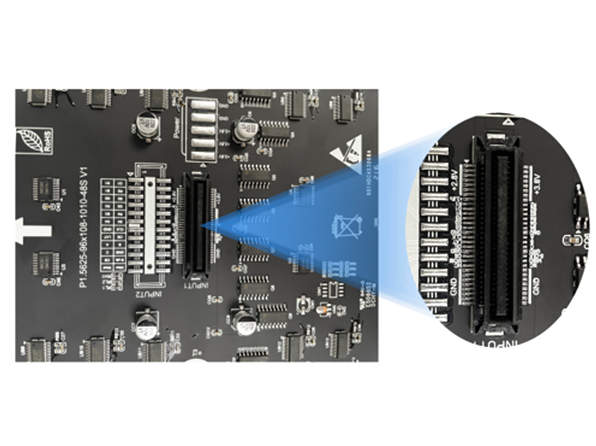

Smart Module Design:

Each module features data storage and dot-to-dot calibration functions, ensuring precise and consistent visual performance across the entire Indoor LED Display. This intelligent design further enhances the performance and reliability of the Indoor LED Displays.

High Performance:

The FIA Series Indoor LED Displays boast a 5000:1 contrast ratio, brightness levels ranging from 200 to 600 nits, and a refresh rate of 3840Hz. The combination of high brightness, high grayscale, and wide viewing angles ensures clear and vibrant visuals from any angle, making the Indoor LED Displays stand out in various application scenarios.

Applications

The FIA Series Indoor LED Displays are suitable for environments that require high-resolution visual effects and immersive experiences. Whether it's attracting customers in retail stores, enhancing presentations in corporate lobbies and conference centers, or providing critical information in museums, airports, and control rooms, the FIA Series Indoor LED Displays deliver outstanding visual performance.

SERIES VARIANTS

Specification
Pixel Pitch	P1.25	P1.56	P1.875	P2.5
Module Size	300*168.75	300*168.75	300*168.75	150*337.5
Module Resolution	240*135	192*108	160*90	60*135
Scan Mode	1/45	1/54	1/45	1/30
Led	SMD 1010	SMD 1212	SMD 1515	SMD 1515
Brightness	200-500	500-600	500-600	500-600
Cabinet Size(WHD)	600337.533	600337.533	600337.533	600337.533
Cabinet Resolution	480 *270	384 *216	320*180	240*135
Cabinet Material	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Weight	4.5	4.5	4.5	4.5
Density	640000	409600	284444	160000
Maintenance Way	Front Access	Front Access	Front Access	Front Access
Refresh Rate	3840	3840	3840	3840
Viewing Angle	160/160	160/160	160/160	160/160
Max /Avg Power	400/200	400/200	400/200	400/200
Gray Scale	14-16	14-16	14-16	14-16
Contrast Ratio	5000:1	5000:1	5000:1	5000:1
IP Grade( Front/ Rear)	IP31	IP31	IP31	IP31
