Indoor Fine Pitch LED Display

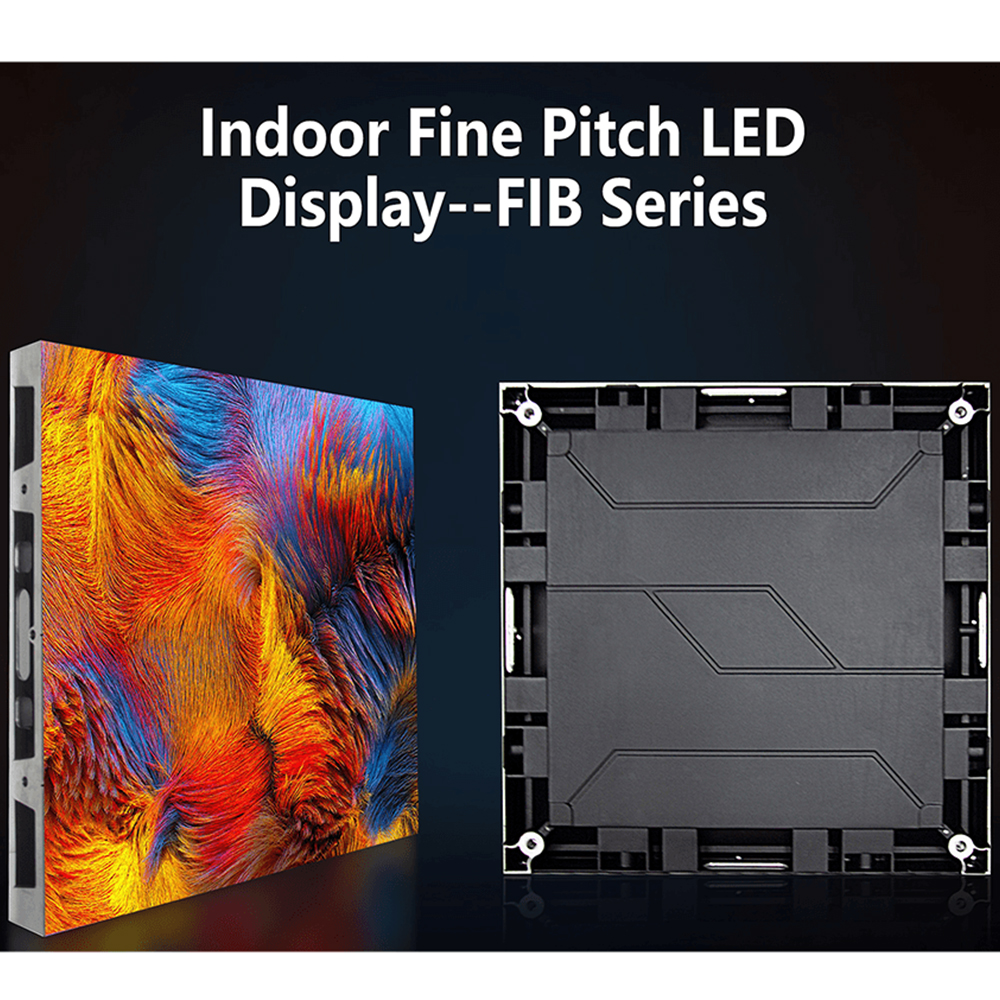

Indoor Fine Pitch LED Display–FIB Series
01
Enhance Your Indoor Visual Experience with HAFOND FIA Series Indoor LED Displays
The HAFOND FIA Series Indoor LED Display can make presentations visual clearer, bringing high-definition picture quality and eye-catching colors to the indoor space, along with an immersive experience up close. Whether in retail stores, government and corporate lobbies, museums, airports, hospitals, or industrial control rooms, the Indoor LED Display can provide a better visual experience with its high resolution.
01

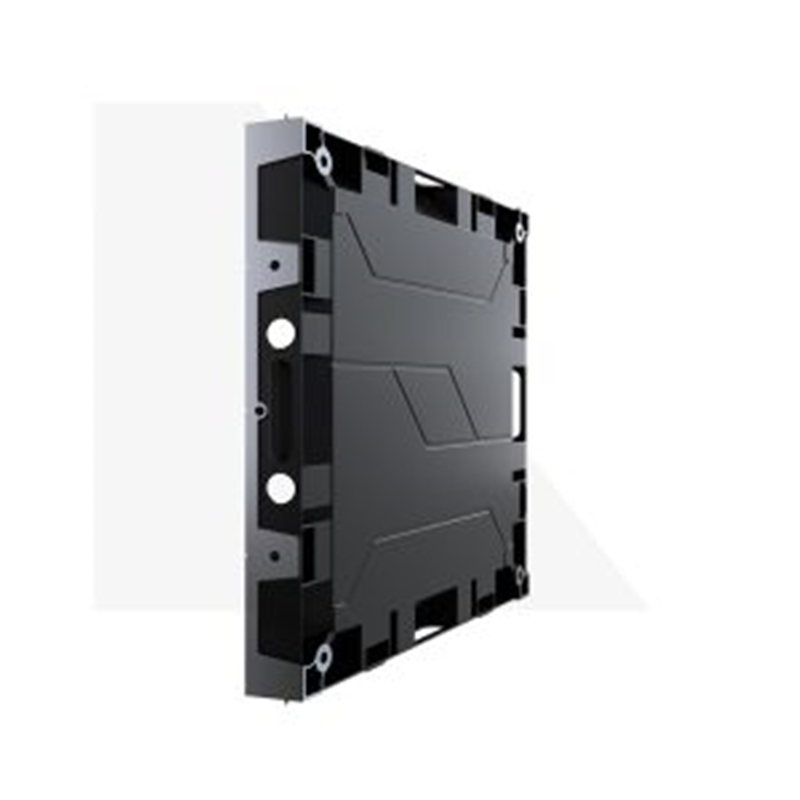

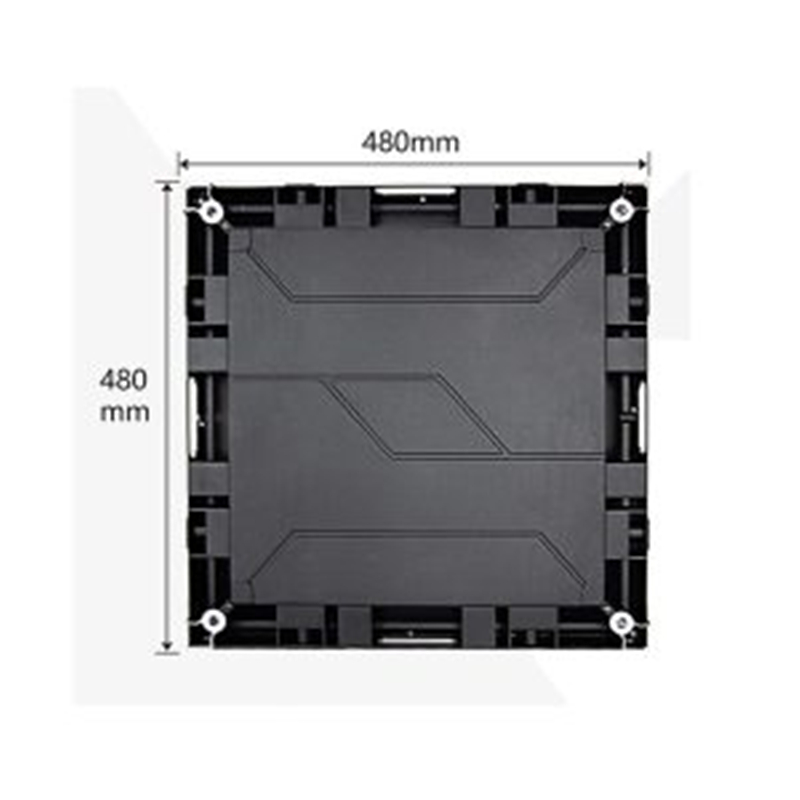

ultra-thin and lightweight

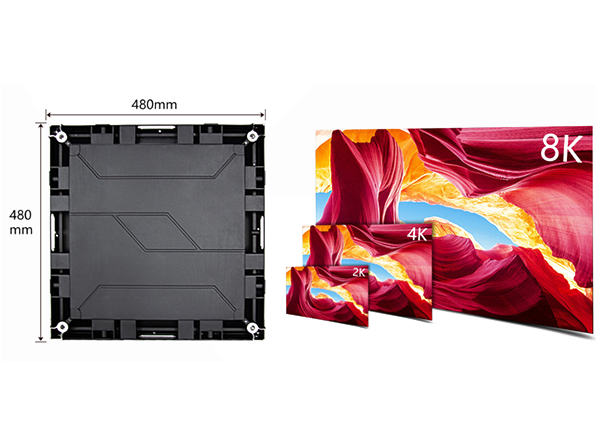

it adopts an aluminum alloy casting cabinet with a thickness of only 55mm and a weight of only 5.5kg; the 1:1 golden ratio cabinet has a size of 480*480mm, providing the best fhd/uhd viewing experience
02

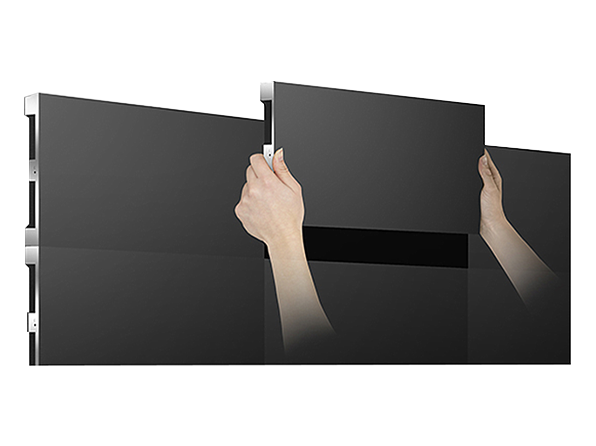

full front maintenance
all components are easily accessible from the front for easy maintenance and replacement.
03
beautiful and practical cabinet design

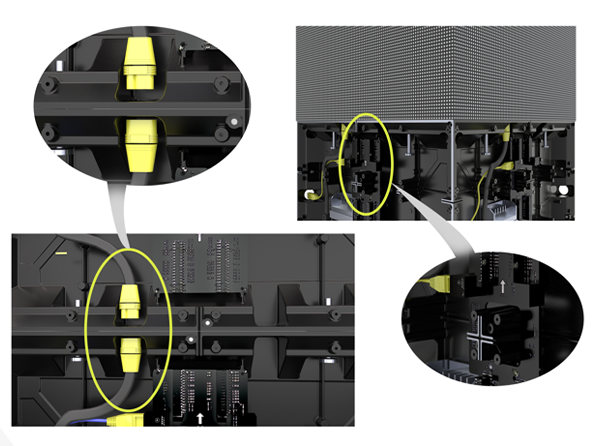

internal power cable connector speeds up cable connections, and the cable-free design simplifies installation.
04

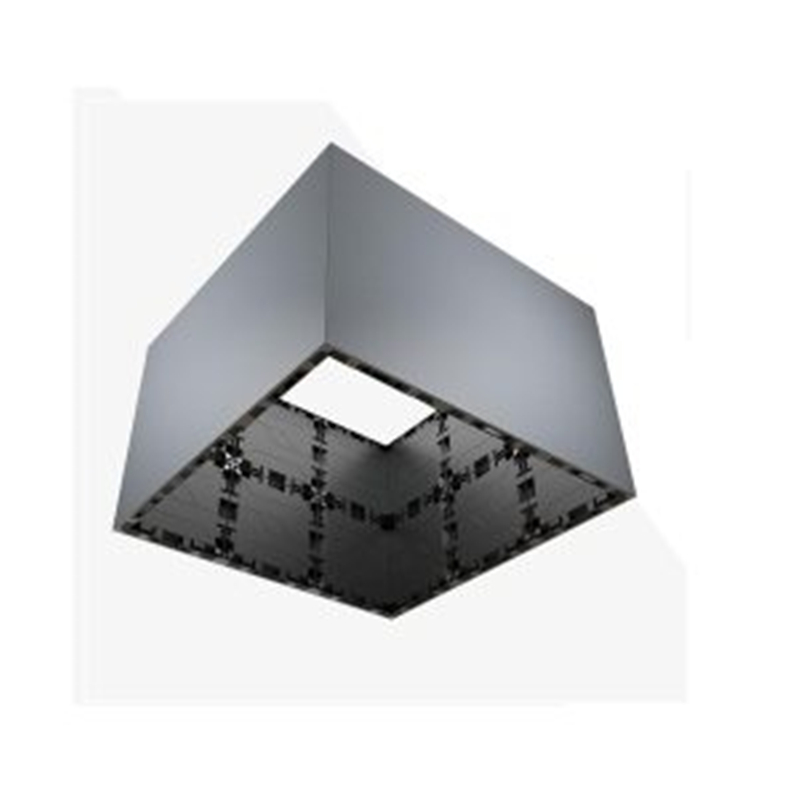

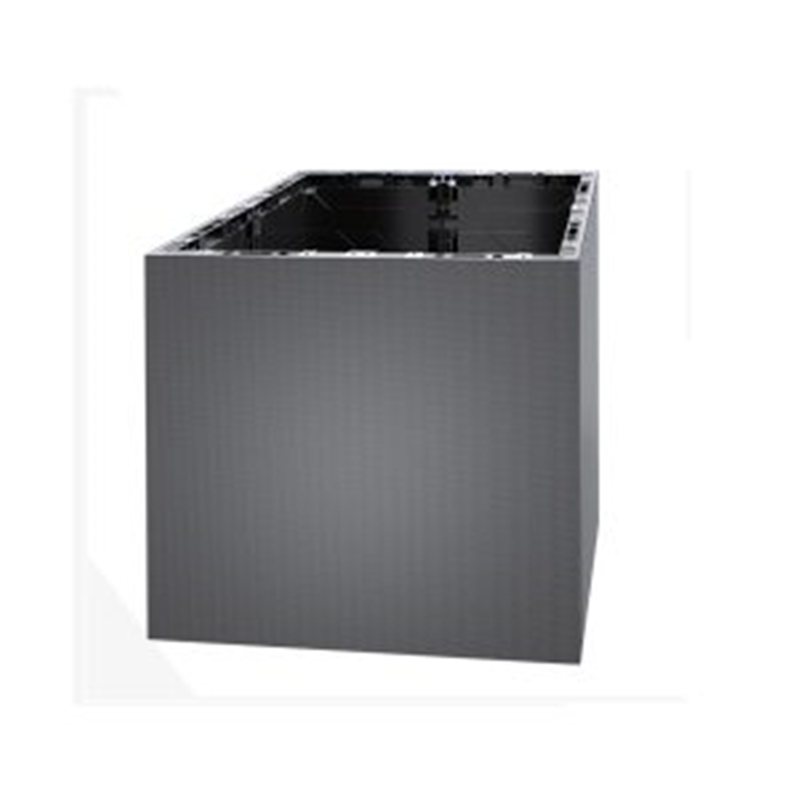

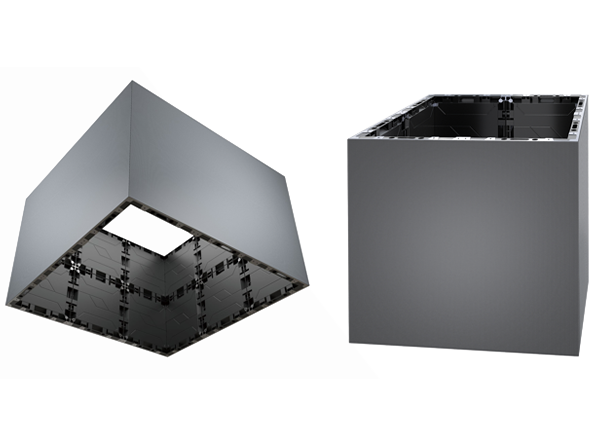

customizable 45 degree bevel design
the cabinet can be customized with a 45-degree bevel to achieve seamless right-corner splicing.
03
high brightness, high grayscale, high refresh rate and wide viewing angle
5000:1 contrast ratio, 500-750 nits brightness, and 3840hz refresh rate ensure perfect display effects.
Applications
Indoor fine LED pitch displays are ideal for a range of applications,including retail stores,corporate lobbies, conference centers, museums, airports,and control rooms,where high-resolution visuals and immersive experiences are essential.
SERIES VARIANTS
| Specification | ||||
| Pixel Pitch | P1.579 | P1.875 | P2.5 | Unit |
| Module Size | 240*120 | 240*240 | 240*240 | mm |
| Module Resolution | 152*76 | 128*128 | 96*96 | dots |
| Scan Mode | 1/38 | 1/64 | 1/48 | |
| Led | SMD 1212 | SMD 1515 | SMD 2020 | |
| Brightness | 500-600 | 500-600 | 650-750 | nits |
| Cabinet Size(W*H*D) | 480*480*55 | 480*480*55 | 480*480*55 | mm |
| Cabinet Resolution | 304*304 | 256*256 | 192*192 | dots |
| Cabinet Material | Die casting aluminum | Die casting aluminum | Die casting aluminum | |
| Cabinet Weight | 5.5 | 5.5 | 5.5 | kgs |
| Density | 401111 | 284444 | 160000 | pixel/sqm |
| Maintenance Way | Front Access | Front Access | Front Access | |
| Refresh Rate | 3840 | 3840 | 3840 | hz/s |
| Viewing Angle | 160/160 | 160/160 | 160/160 | deg |
| Max /Avg Power | 400/200 | 400/200 | 400/200 | w/m2 |
| Gray Scale | 14-16 | 14-16 | 14-16 | bits |
| Contrast Ratio | 5000:1 | ‘5000:1 | 5000:1 | |
| IP Grade( Front/ Rear) | IP31 | IP31 | IP31 | |
