LED Module-Indoor led module
LED Module

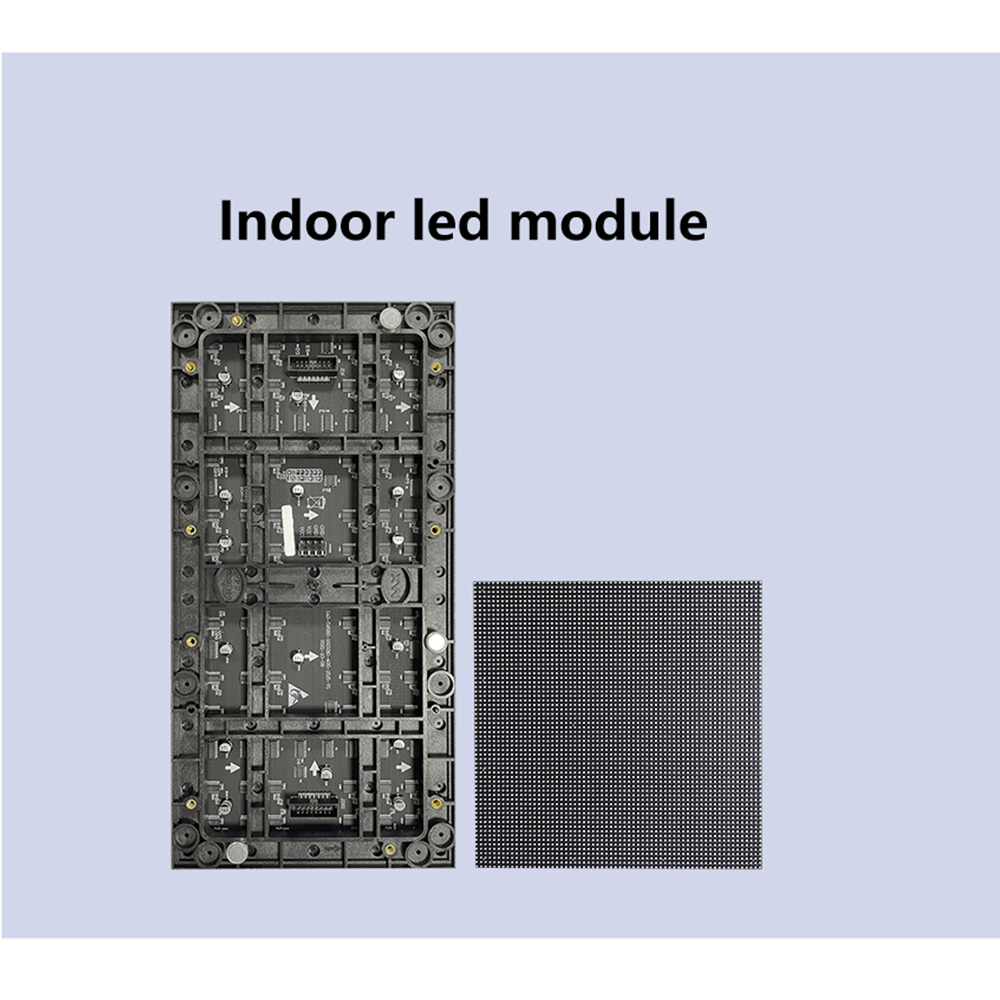

0_0004_Indoor led module.jpg

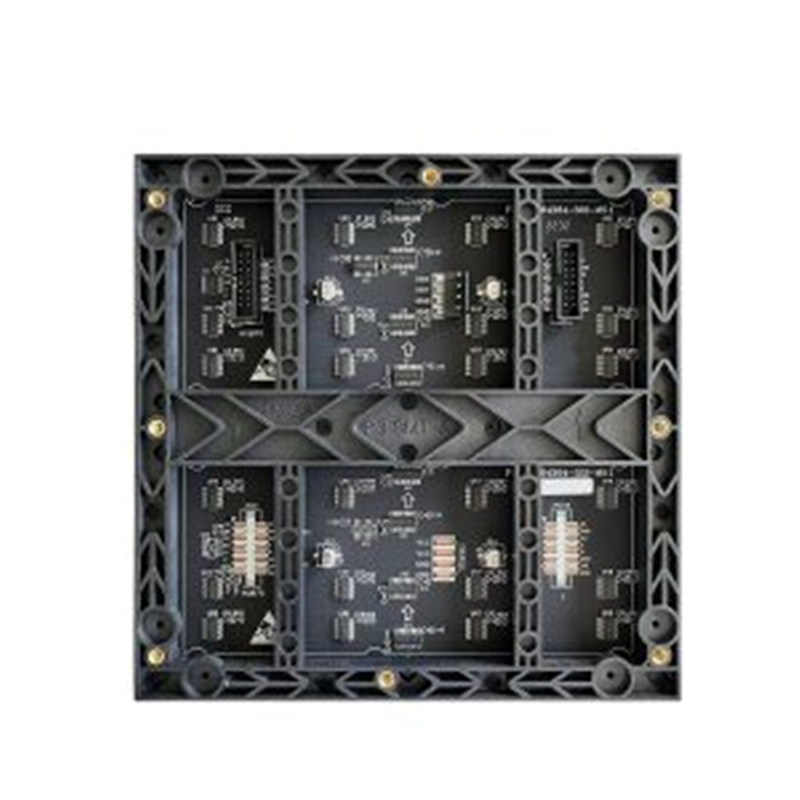

LED Module-Indoor led module (2).jpg

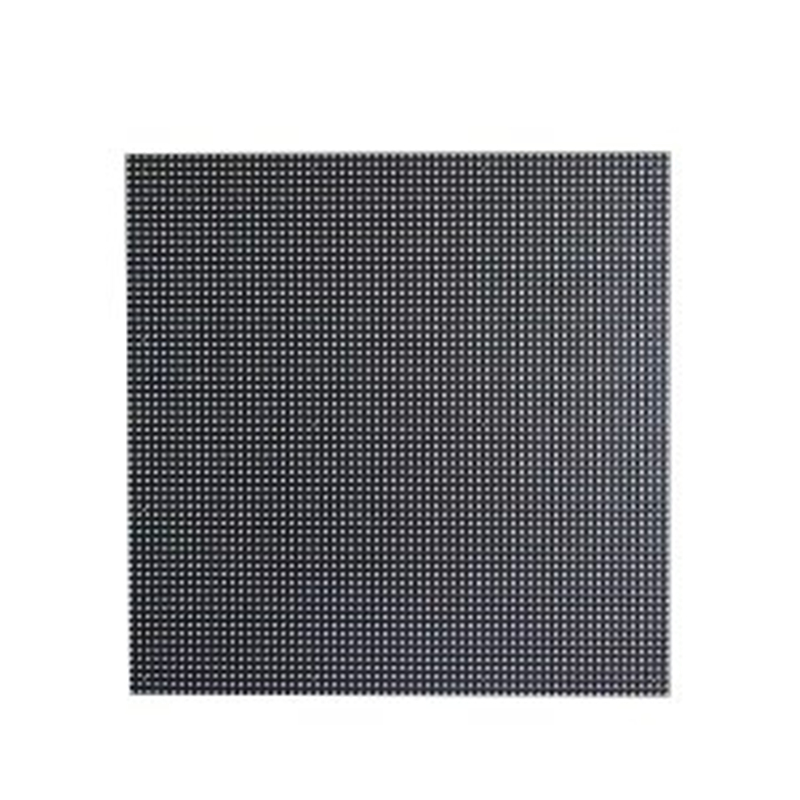

LED Module-Indoor led module (3).jpg

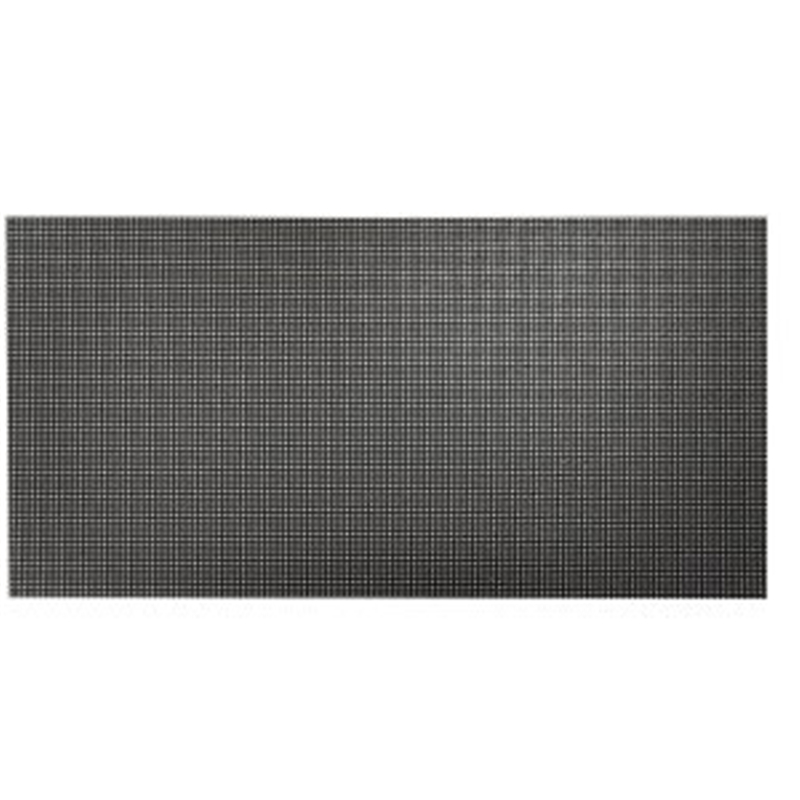

LED Module-Indoor led module (4).jpg

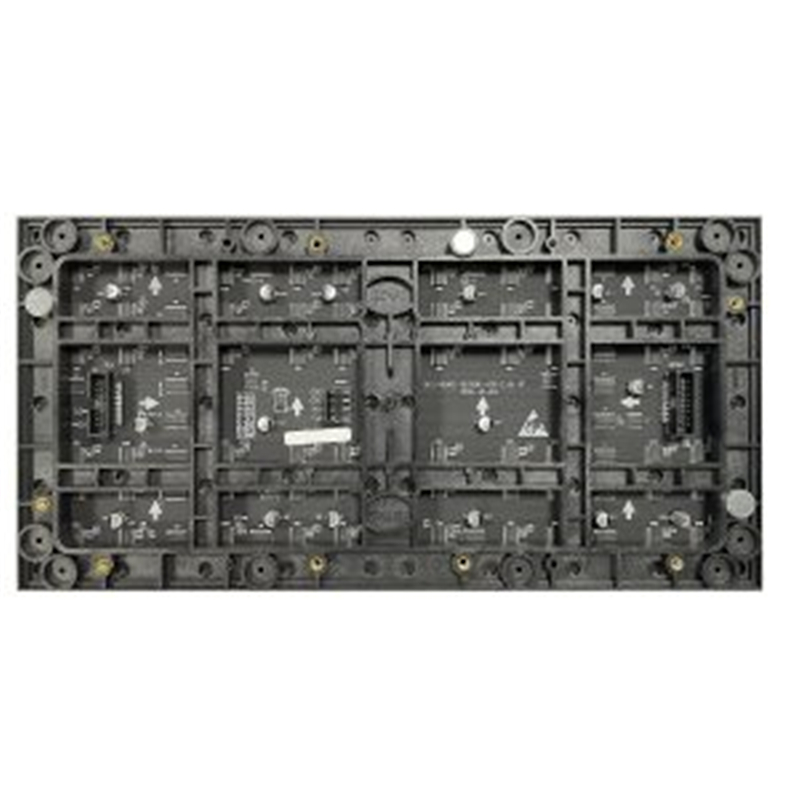

LED Module-Indoor led module (5).jpg

LED Module-Indoor led module

Name Indoor led module
Pixel Pitch P1.5/P1.8/P2/P2.5/P3/P3.076/P4/P5
Module Size 320*160mm/ 256*128mm/ 192*192mm
PCB Type regular
Cabinet Size 640*480mm/576*576mm(customized)
Cabinet Matrial Steel/ Die casting aluminum
Cabinet weight 20kgs/sqm& 7.35kgs/cabinet
Brightness 600-750 nits
Refresh Rate 3840
Maintenance Way Front Access
Certification CE, FCC, ROHS, ISO
    Contact us

    Product Key Points

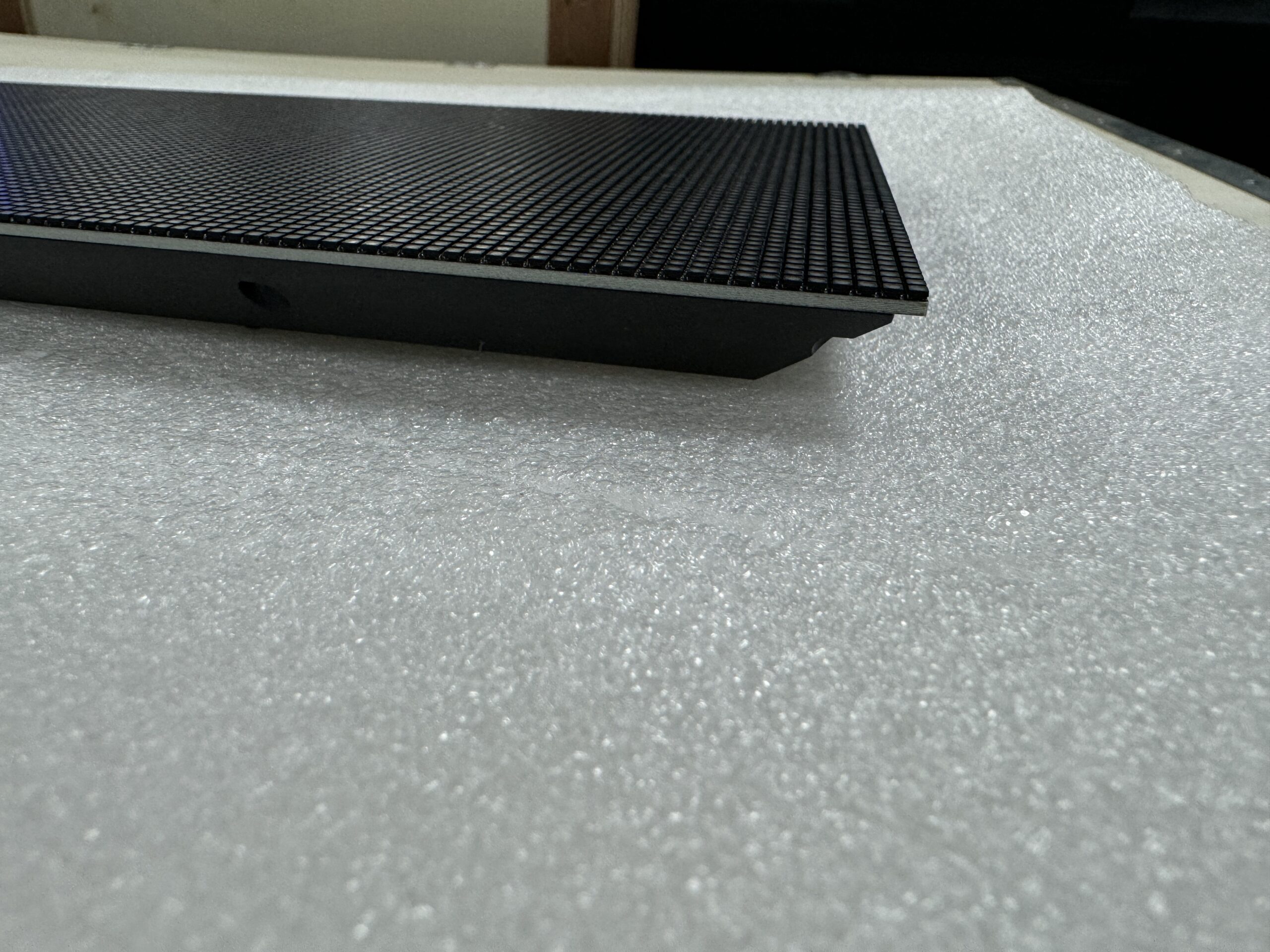

    52eb772e21ab2e4164fb53f0d59f7fc-scaled
    01

    LED Module-Indoor led module

    Hafond LED Modules - The Future of Indoor and Outdoor Display Technology
    In today's fast-paced digital landscape, engaging visual communication is vital. Enter Hafond led module p3 technology, engineered for both indoor led screen applications and outdoor settings. These high-quality p3 led modul units adapt to advertising, sports arenas, and retail.When hosting events in Dubai or globally, the competitive led screen rental prices of the RIC series deliver unparalleled value  As a premier indoor led screen rental solution , it simplifies setups while stunning audiences.

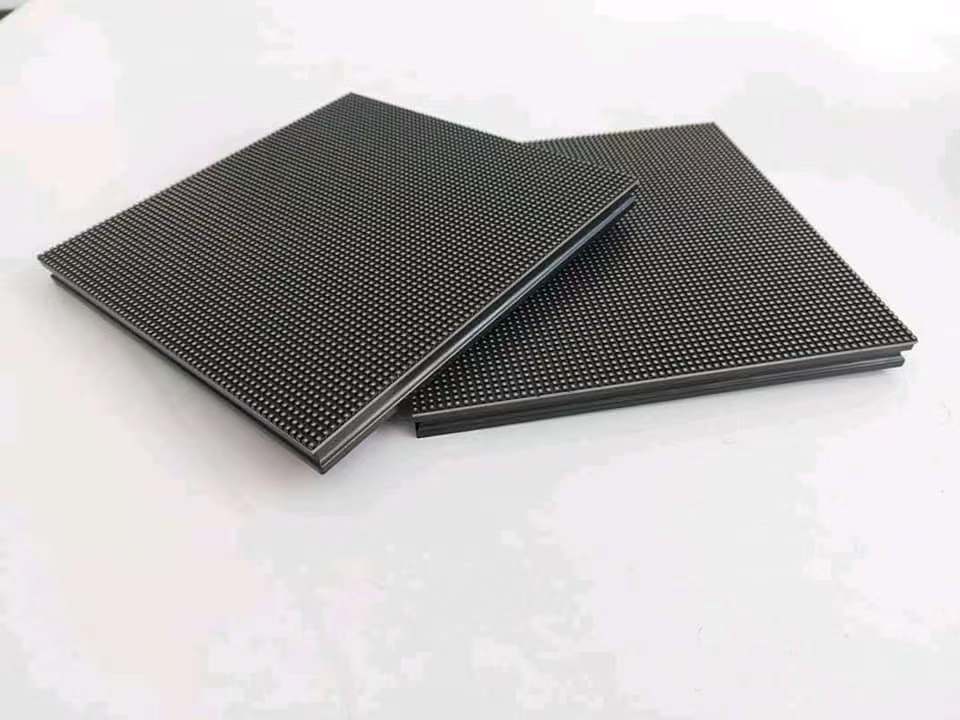

    b0d8e35bd43e3544fe515c1231da44f
    02

    Unparalleled Visual Quality

    Hafond led module p3 delivers exceptional brightness and clarity. Each p3 led modul provides superior color accuracy for vibrant images, crucial for high-traffic indoor led screen environments where visual integrity matters.

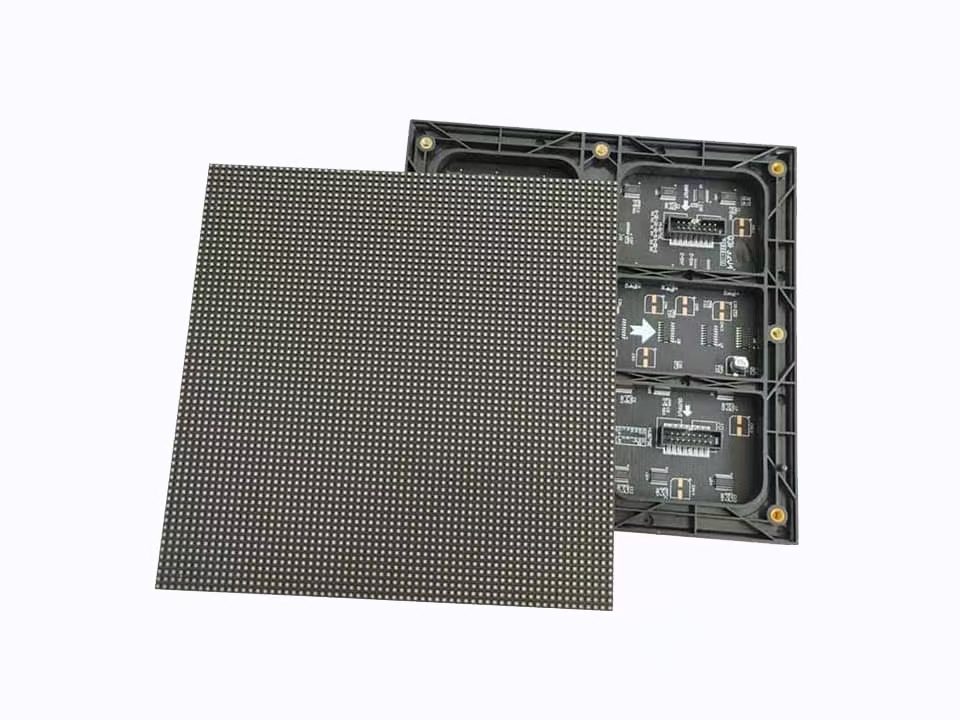

    234088deac47c79e1fab2c043231cb3
    03

    Modular Design for Customizable Solutions

    The versatility of Hafond led module p3 allows easy customization for any project. This p3 led modul design integrates seamlessly into larger systems, ideal for fixed indoor led screen installations and rental applications.

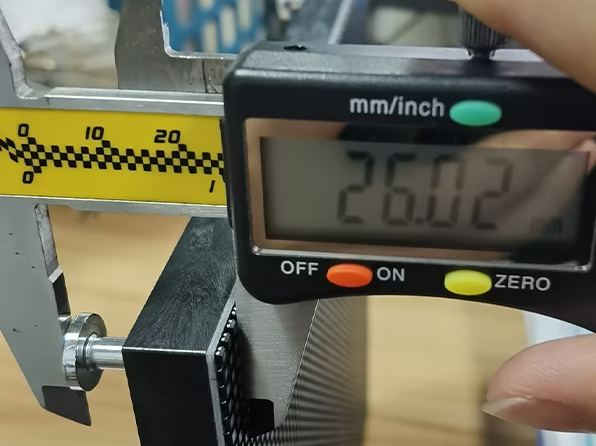

    746d103f8f7e26a0f396c912ca277c0
    04

    Energy Efficiency - A Win-Win Approach

    Hafond led module p3 consumes low power, reducing operational costs for indoor led screen projects. This p3 led modul efficiency maximizes ROI while minimizing carbon footprint.
    2d044c11199ed5a7efc180cf07e27bf-2
    03

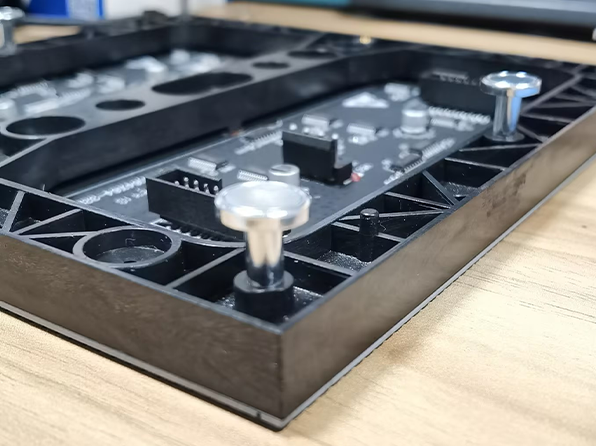

    Durability for Long-Lasting Performance

    Constructed with robust materials, Hafond led module p3 withstands harsh conditions. The p3 led modul’s 100,000-hour lifespan minimizes indoor led screen maintenance needs.

    Wide-Ranging Applications

    Outdoor Street Pole LED Displays
    Strategically placed led module p3 units capture attention in urban environments.

    SERIES VARIANTS

    Pixel Pitch P1.53 P1.86 P2 P2 P2.5 P3.0 P3.076 P4 P4 P5
    Module Size 320*160mm 320*160mm 320*160mm 256*128mm 320*160mm 192*192mm 320*160mm 320*160mm 256*128mm 320*160mm
    Pixel Density 422750  dots/m² 289050  dots/m² 250000  dots/m² 250000  dots/m² 160000  dots/m² 111111dots/m² 105625  dots/m² 62500  dots/m² 62500  dots/m² 40000  dots/m²
    Encapsulation
    Mode    		 SMD1212 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020 SMD2020 SMD2020 SMD2020 SMD2020
    Pixel Resolution 208*104 dots 172*86 dots 160*80 dots 128*64 dots 128*64 dots 64*64 dots 104*52 dots 80*40 dots 64*32 dots 64*32 dots
    Module Thickness 15mm 15mm 15mm 15mm 15mm 15mm 15mm 15mm 15mm 15mm
    Module Weight 0.45kgs 0.45kgs 0.45kgs 0.2kgs 0.45kgs 0.21kgs 0.5kgs 0.35kgs 0.2kgs 0.3kgs
    Drive Type constant drive,52S constant drive,43S constant drive,40S constant drive,32S constant drive,32S constant drive,32S constant drive,26S constant drive,20S constant drive,16S constant drive,16S
    Brightness ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m² ≥650  cd/m²
    Best     Viewing
    Distance    		 2-15m 2-15m 2-15m 2-15m 2-15m 3-15m 3-15m 4-15m 4-15m 5-15m
    Best Viewing Angle 160°(V)160°(H) 160°(V)160°(H) 160°(V)160°(H) 160°(V) 160°(H) 160°(V)160°(H) 160°(V)160°(H) 160° (V) 160°(H) 160°(V)160°(H) 160°(V) 160°(H) 160°(V)160°(H)
    Working
    Environment    		 -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50° -20°/+50°
    Operation Humidity 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90% 10%-90%
    Working Voltage AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10% AC110/220V±10%
    Average   Power
    Consumption    		 ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m² ≤200W/m²
    Max       Power
    Consumption    		 ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m² ≤400W/m²
    Refresh
    Frequency    		 ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
    Frame Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
    Gray Scale 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits

    Why, Choose HAFOND?

    From retail to command centers, our indoor led screen and indoor led signs combine brilliance, durability, and adaptability. Reshape your space with HAFOND’s innovation—where every pixel inspires!
