Outdoor fixed LED display-FOC quick front access series
01
Outdoor Fixed LED Display - FOC Quick Front Access Series
Introducing Hafond’s cutting-edge outdoor led screen rental solution, designed for efficiency and performance. The FOC series ensures seamless maintenance, making it ideal for outdoor led display rental needs in any environment.
01
Hassle-Free Maintenance

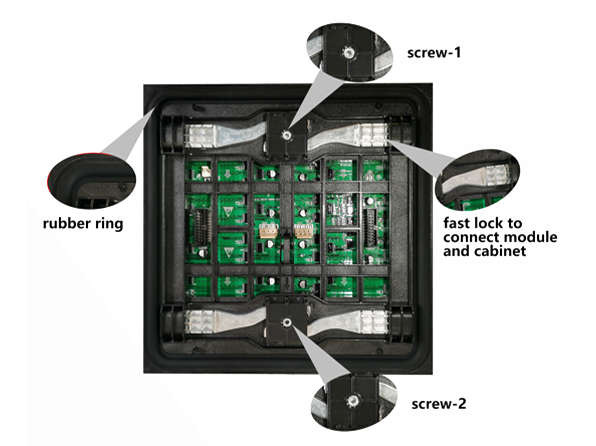

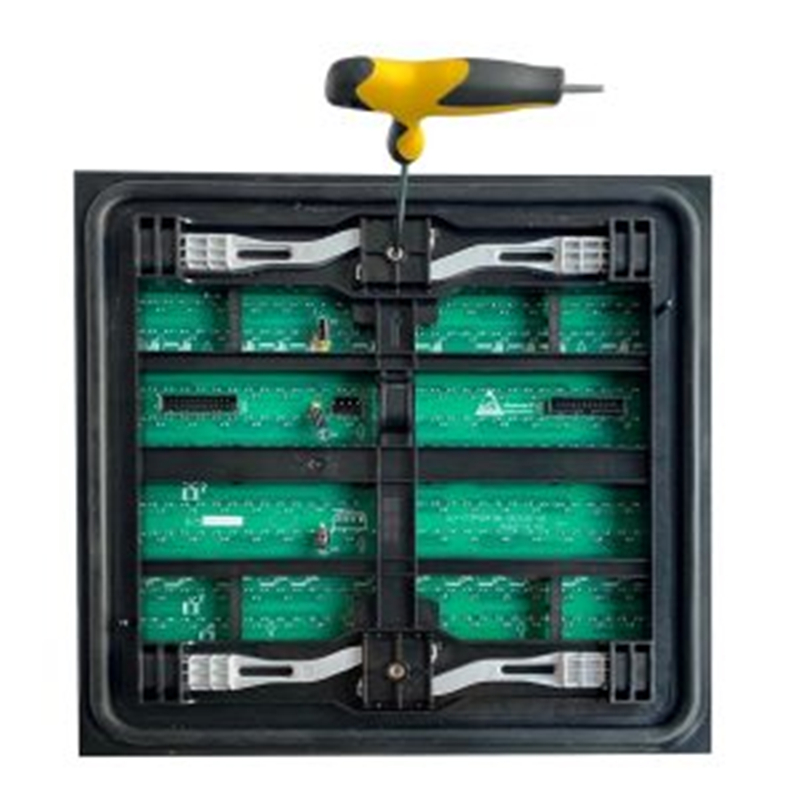

Our unique quick-release mechanism revolutionizes outdoor led screen hire maintenance: Module removal in 60 seconds with hex wrench 80% lower labor costs for outdoor led display rental operations. Zero downtime for outdoor led screen rental event turnovers.
02
Excellent Heat Dissipation
Thermal Management
Copper-core PCB extends lifespan of outdoor led screen rental units by 40% vs. competitors – vital for 24/7 outdoor led display rental operations.
02

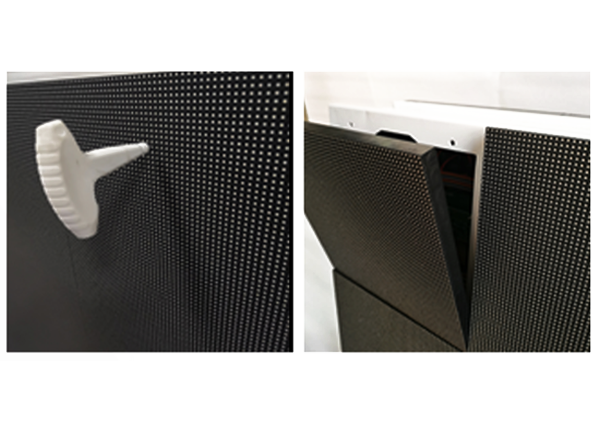

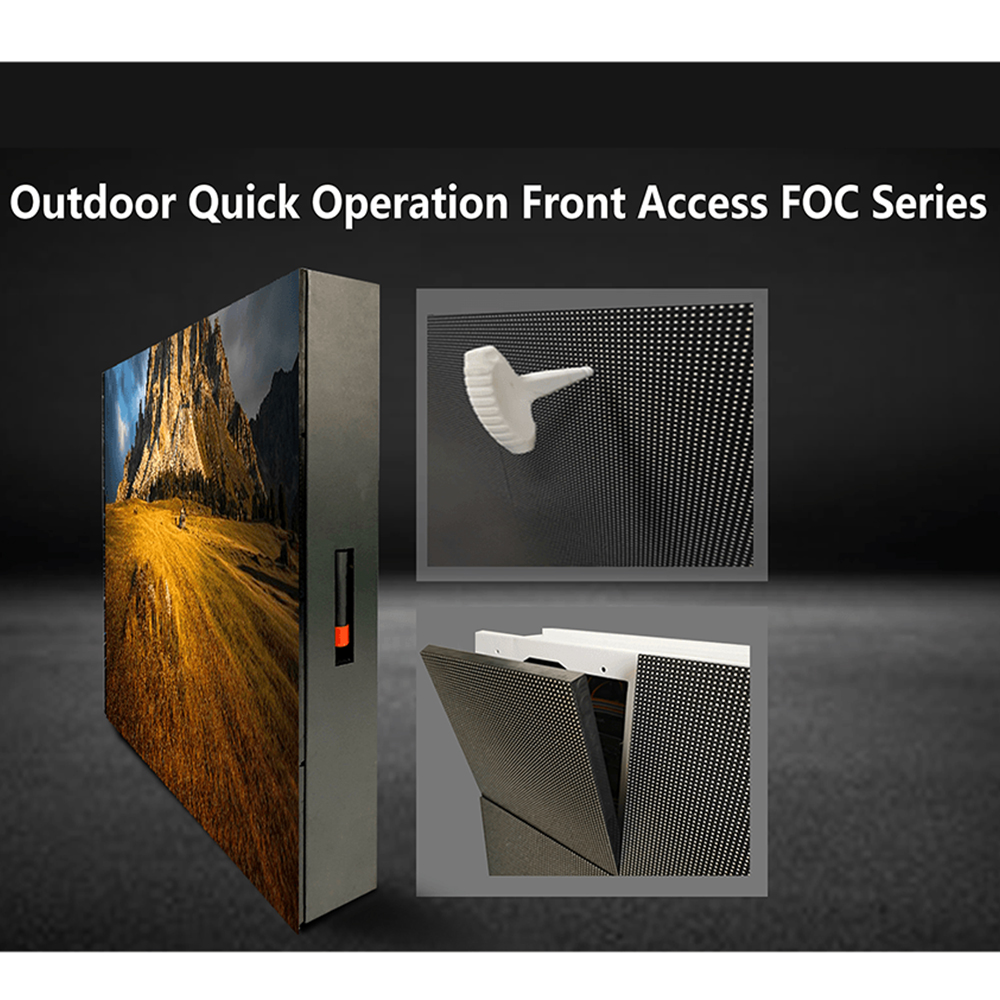

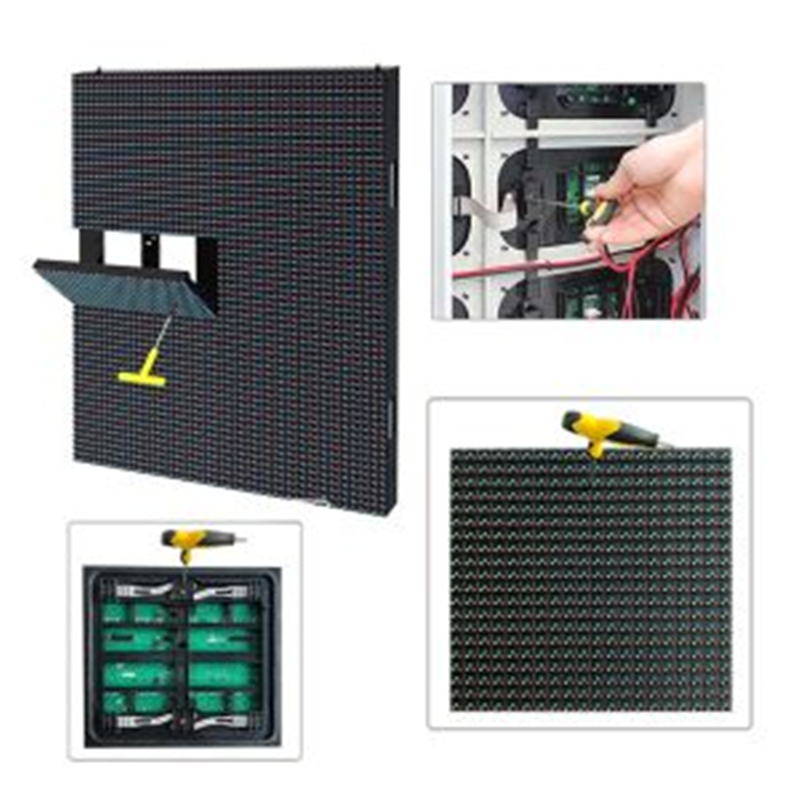

Full Front Service
Every component is front-accessible, eliminating rear access needs. This revolutionary design simplifies outdoor led display rental maintenance and streamlines outdoor led screen hire logistics. Front-service capability is essential for efficient outdoor led screen rental management.
02

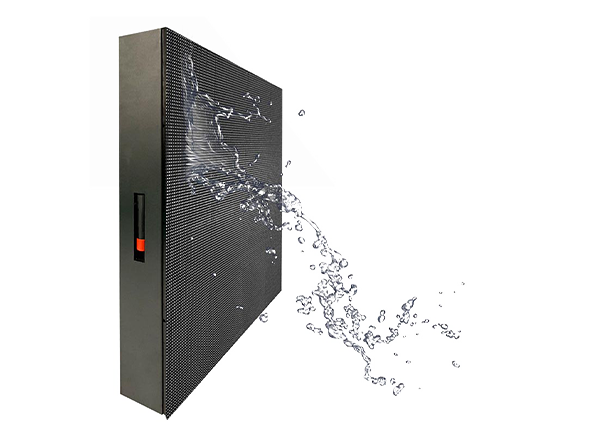

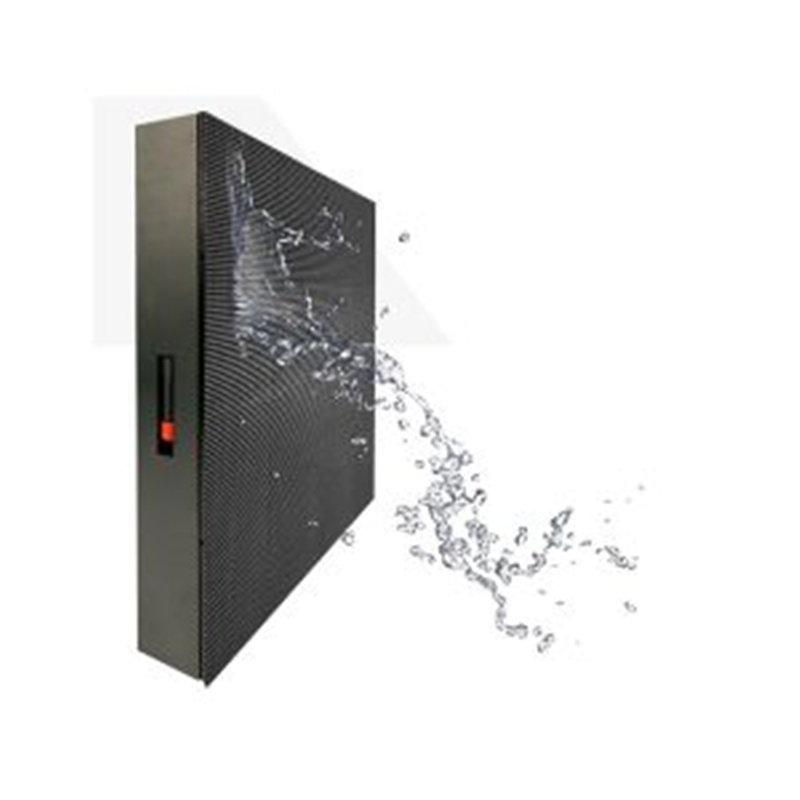

Robust and Weather-Resistant Design
Each module features a strengthened shell and IP65 waterproofing, critical for durable outdoor led screen hire. The screwless fast-lock allows rapid reconfiguration during outdoor led display rental events. These features ensure reliability for long-term outdoor led screen rental installations.
02
Excellent Heat Dissipation
Our copper-core ventilation system prevents overheating, extending the lifespan of outdoor led screen hire units. Effective thermal management is crucial for 24/7 outdoor led display rental operations, ensuring sustained performance in outdoor led screen rental deployments.
02
Outstanding Visual Performance
Engineered with 5000nit brightness and 3840Hz refresh rate, these displays deliver sunlight-readable visuals for impactful outdoor led display rental advertising. The 4000:1 contrast ratio ensures stunning clarity in all outdoor led screen hire applications.
02
Super Wide Viewing Angle
The 140° horizontal viewing angle maximizes audience reach for outdoor led screen rental installations. Whether in stadiums or transit hubs, this feature enhances visibility for outdoor led display rental content and outdoor led screen hire promotions.
02
Conclusion
Empower your visual communications with Hafond's FOC series – the ultimate choice for outdoor led screen hire, outdoor led display rental, and outdoor led screen rental needs. Experience unmatched convenience and durability!
SERIES VARIANTS
| Pixel Pitch | P2.97 | P3.91 | P4.81 | P4 | P5 | P6.67 | P8 | P10 | Unit |
| Module Size | 250*250 | 250*250 | 250*250 | 320*320 | 320*320 | 320*320 | 320*320 | 320*320 | mm |
| Module Resoluticn | 84*84 | 64*64 | 52*52 | 80*80 | 64*64 | 48*48 | 40*40 | 32*32 | dots |
| Scan Mode | 1/21 | 1/8 | 1/7 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 | |
| Led | SMD 1415 | SMD 1921 | SMD 1921 | SMD 1921 | SMD 1921 | SMD 3535 | SMD 3535 | SMD 3535 | |
| Bright ness | 4500 | 6000-6500 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 6000-7000 | nits |
| Cabinet Size(W*H*D) | 1000*1000*120 (customized) | 1000*1000*120 (customized) | 1000*1000*120 (customized) | 960*960*120 (customized) | 960*960*120 (customized) | 960*960*120 (customized) | 960*960*120 (customized) | 960*960*120 (customized) | mm |
| Cabinet Resolution | 336*336 | 256*256 | 208*208 | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 | dots |
| Cabinet Material | steel/aluminum | ||||||||
| Cabinet Weight | 40/33 | 40/33 | 40/33 | 37/30 | 37/30 | 37/30 | 37/30 | 37/30 | kgs |
| Density | 112896 | 65536 | 43264 | 62500 | 40000 | 22477 | 15625 | 10000 | pixel/sqm |
| Maintenance Way | Front/Rear Access | ||||||||
| Refresh Rate | 1920&3840 | hz/s | |||||||
| Viewing Angle | 140/140 | deg | |||||||
| Max /Avg Power | 680/340 | 800/400 | 800/400 | 780/390 | 780/390 | 780/390 | 780/390 | 800/400 | w/昭 |
| Gray Scale | 14 | bits | |||||||
| Contrast Ratio | '3000:1 | ||||||||
| IP Grade( Front/ Rear) | IP65/IP54 (Front/Rear) | ||||||||
Why, Choose HAFOND?
Visibility: 8000nit led display outdoor advertising readable in direct sun. Engagement: Interactive outdoor ld advertising screen with motion sensors. ROI: 9-month payback period for outdoor led screen manufacturers’ premium models
