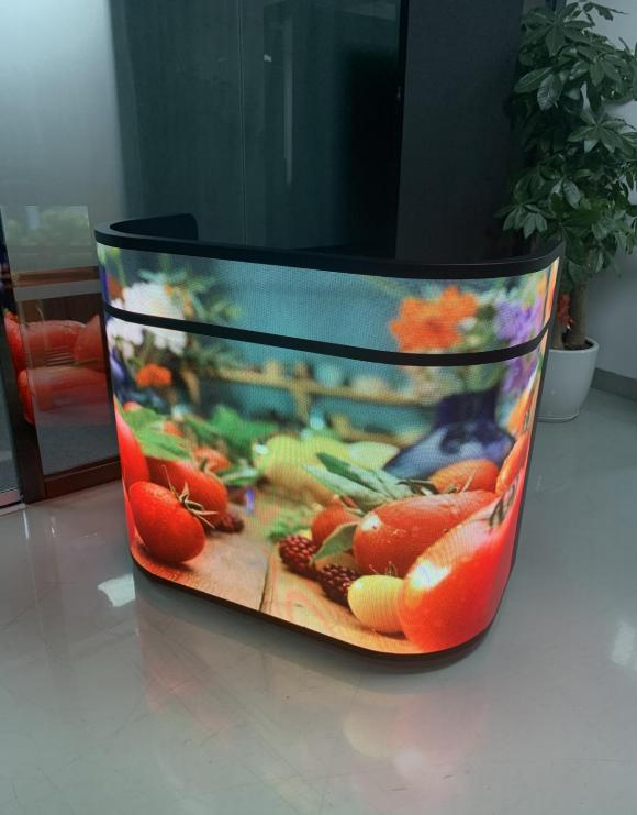

Smart Front Desk LED Guide Display
Indoor Fixed LED Display

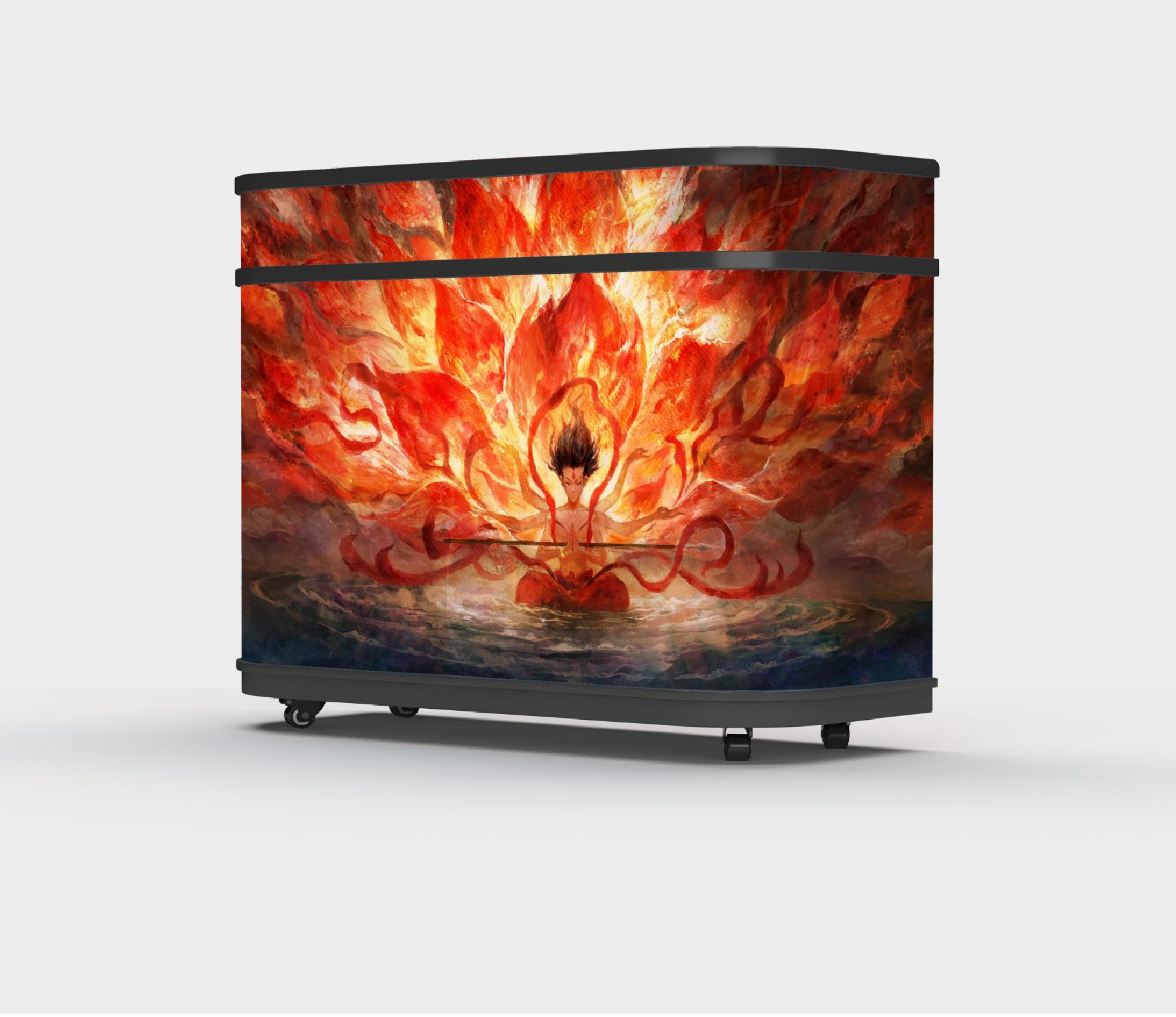

Front desk led display.png

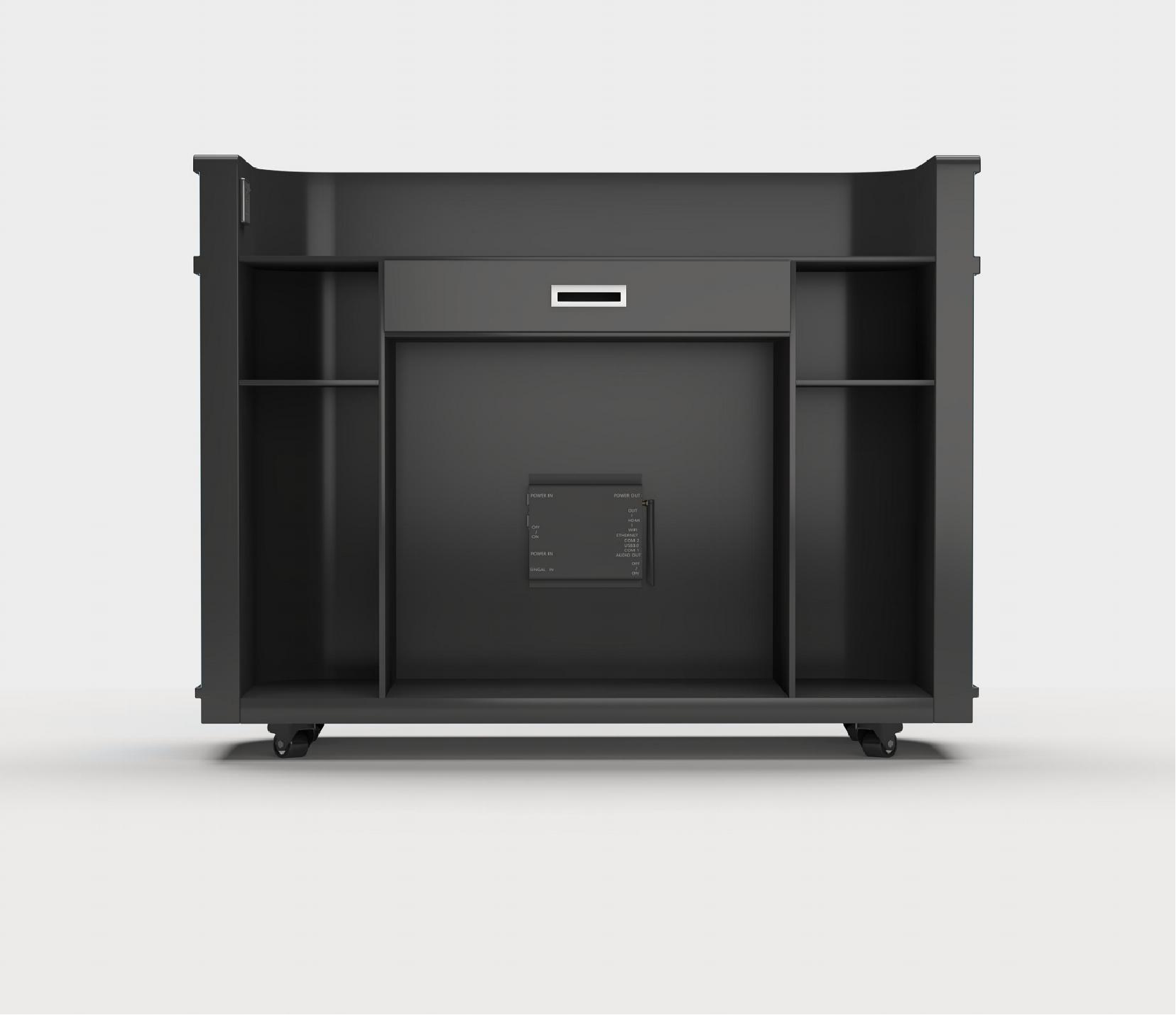

Front desk led display2.png

Smart Front Desk LED Guide Display

As the digital landscape evolves, corporate front desk reception areas are experiencing a revolutionary shift from traditional static signage to dynamic, intelligent displays. This transformation positions the front desk as more than just a transitional space; it serves as an engaging showcase of your brand's values, service philosophy, and professional capabilities. Our state-of-the-art LED guide display screens are designed to enhance customer experience, effectively communicate key information, and elevate your corporate image. Embrace the future of reception with our innovative solutions, ensuring that every visitor is welcomed with professionalism and technological sophistication. Boost your brand presence today with our cutting-edge display technology

    Contact us

    Product Key Points

    01

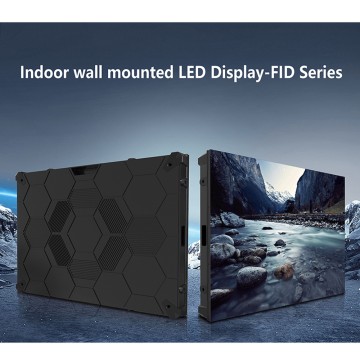

    Indoor fixed led display–FID 640mm series

    Step into the future with HAFOND’s Indoor LED Displays, where vibrant colors and dynamic visuals come to life. Our displays are engineered for sharp, high-contrast images that captivate and engage, making them perfect for any indoor setting. Energy-efficient and user-friendly, HAFOND LED displays redefine the viewing experience with technology that’s built to impress. Transform your space today with HAFOND’s leading display innovation.
    Indoor fixed led display
    01

    Scientific Logic of Dimension Design

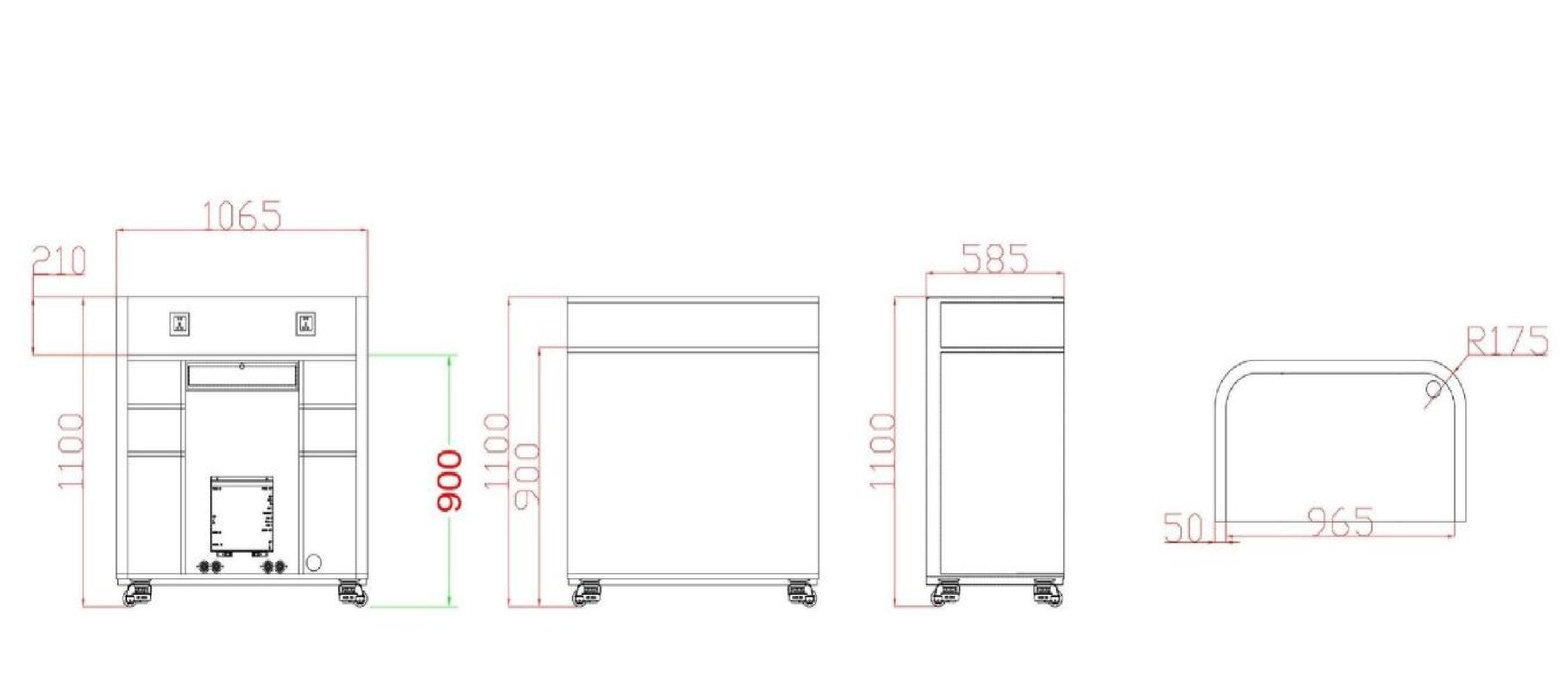

    The 1675mm length of the unit is not accidental; it is based on a comprehensive consideration of standard front desk width, the horizontal field of human vision (approximately 124 degrees), and information capacity needs. This size can accommodate sufficient information content while avoiding spatial oppression caused by excessive length. The 585mm width fully considers the common depth of modern front desk countertops, ensuring ample workspace remains after display placement. The 1100mm height strictly adheres to the natural eye-level range when standing (approximately 1400-1700mm from the ground), allowing visitors to comfortably access information without deliberately tilting their heads up or down when approaching the front desk—a detail that significantly enhances the friendliness of the viewing experience.
    Indoor fixed led display
    02

    Artistic Considerations of Visual Proportion

    The main display area adopts a 2560×800mm dimension, creating a unique widescreen aspect ratio of 3.2:1. This ratio simulates the visual tension of a movie screen, enabling simultaneous horizontal display of multiple information columns without appearing crowded, while ensuring fonts are sufficiently large and clear vertically. The specially designed 160mm reserved area at the bottom breaks the monotony of traditional displays. It can be used to embed corporate logos, brand slogans, or configure touch buttons or indicator lights, achieving dual optimization of functional zoning and visual hierarchy.
    Indoor fixed led display
    03

    Psychological Application of Color and Material

    The entire unit employs a matte black spray finish, a choice deeply considered. From a color psychology perspective, black conveys professionalism, authority, and stability. The matte treatment avoids the cheapness and light pollution of glossy surfaces while reducing fingerprint retention, maintaining long-term cleanliness. This color scheme exhibits strong environmental adaptability, harmoniously integrating into and enhancing the overall spatial texture, whether in the luxurious marble front desk of financial institutions, the minimalist metal style of tech companies, or the warm wooden environment of medical facilities.
    Indoor fixed led display
    04

    Engineering Wisdom of Modular Design

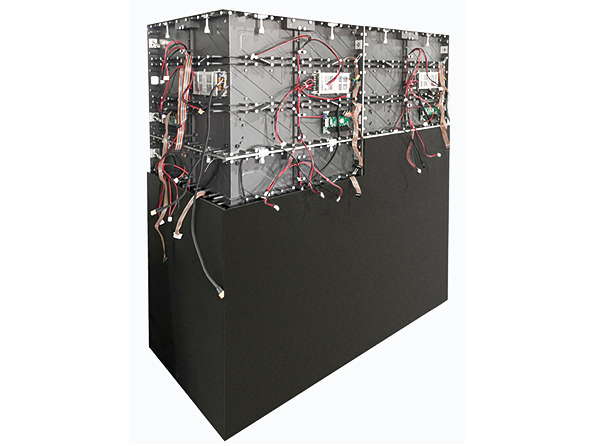

    The basic display unit uses 320×160mm standardized modules, a size that balances resolution, brightness, and maintenance convenience. Each module contains 25,600 LED beads (calculated according to P3.0 specification), with pixel pitch fine enough to present clear text and images at a standard viewing distance of 1.5 meters. The modular design brings revolutionary advantages: First, it supports front maintenance, eliminating the need for rear space and greatly increasing installation flexibility. Second, failure of a single module does not affect overall use, significantly reducing replacement cost and time. Finally, it allows for potential future upgrades, as customers can replace modules with higher specifications as needed.
    Indoor fixed led display
    03

    Comprehensive Optimization of Visual Performance

    This display adopts a high refresh rate design (≥3840Hz), completely eliminating scan lines during photography and meeting high-end application scenarios such as media interviews and live broadcasts. A high contrast ratio of 5000:1 ensures sharp text definition against dark backgrounds, while a brightness of 500cd/m² or more, combined with automatic light sensing, can adapt to extreme lighting changes from soft indoor lighting to direct sunlight at the front desk. Wide viewing angle technology (160 degrees both horizontally and vertically) ensures consistent color and brightness whether visitors view from the side or staff from the inside, avoiding perspective bias in information delivery.
    Indoor fixed led display
    03

    Intelligent Display Content Management System

    The built-in multi-zone display engine supports dividing the screen into multiple logical areas: the left side can display real-time queue calling information, the central area can scroll welcome messages and announcements, and the right side can show weather, time, or promotional videos. All content is managed remotely via a cloud-based visual editor, allowing non-technical personnel to easily update through drag-and-drop operations. The system supports multiple content sources including text, images, videos, web pages, streaming media, and data interfaces (such as connecting to queuing systems or meeting room booking systems), achieving true dynamic information integration.
    Indoor fixed led display

    Customized Multi-Industry Solutions

    Tailored to the special needs of different industry front desks, we have developed scenario-specific function packages: Government Service Center Edition: Deep integration with queuing systems, real-time display of waiting numbers, service windows, and "Party Member Model Post" information, integrating satisfaction evaluation entry. Medical Guidance Edition: Integration with HIS systems, display of department distribution, doctor schedules, health education content, and emergency guidance switching in urgent situations. Corporate Reception Edition: Fusion with visitor appointment systems, display of daily visit schedules and meeting room status, capable of integrating facial recognition to welcome specific visitors. Hotel Front Desk Edition: Integration with PMS systems, display of daily activities, weather forecasts, exchange rates, supporting automatic multi-language switching.
    C-8
    03

    Expansion Possibilities for Interactive Functions

    The basic display can be upgraded to a touch interactive system, allowing visitors to inquire about floor guides, service processes, and FAQs via finger taps. Combined with a voice recognition module, voice inquiry and response can also be achieved, especially suitable for visitors with limited use of their hands. Reserved IoT interfaces can connect to environmental sensors, automatically brightening the screen when someone is detected in the front desk area and dimming it to save energy when no one is present, intelligently reducing operational energy consumption.

    Wide Range of Applications

    HAFOND’s indoor led screen excels in diverse settings:
    Retail Stores: Dynamic promotions via eye-catching indoor led signs.
    Restaurants: Showcase menus on energy-efficient indoor led screen displays.
    Hotels/Airports: Real-time updates on ultra-reliable indoor led signs.
    Sports Venues: Live broadcasts on wide-view indoor led screen systems.
    Control Rooms: 24/7 monitoring with high-contrast indoor led signs.
    Architectural Spaces: Transform lobbies with artistic indoor led screen integrations.

    SERIES VARIANTS




    Specification can be customized

    Mo d e l

    P2.5 (GOB)

    P1.8 (GOB)



    Pixel Pitc(mm)



    2.5



    1.86



    P i x e l   D e n s i ty



    1 6 0 0 0 0



    2 8 8 9 0 6



    Mo d u l e  S i z e ( Wx H x D )



    3 2 0 x 1 6 0 x 5 . 2 m m



    L E D  T y p e



    S M D 1 5 1 5



    S M D 1 2 1 2



    Mo d u l e   R e s o l u t i o n （  d o t s ）



    1 2 8 x 6 4



    1 7 2 x 8 6



    m o d u l e   a r r a n g e m e n t ( p e r   c a b i n e t )



    6 x 6



    S c r e e n  S i z e   ( W x H )



    1 9 2 0 x 9 6 0 m m



    C a b i n e t  S i z e ( Wx H x D )



    1 0 6 5 x 1 1 0 0 x 5 8 5 m m



    C a b i n e t  we i g h t



    9 7 k g / p c



    C a b i n e t  R e s o l u t i o n ( d o t s )



    7 6 8 x 3 8 4



    1 0 3 2 x 5 1 6



    S ca n n i n g   Mo d e



    3 2 / S



    4 3 / S



    B e s t  V i e wi n g   D i s t a n c e ( m )



    ≥2.5



    ≥1.86



    B r i g h t n e s s



    6 0 0 N i t s



    6 0 0 N i t s



    R e fr e s h  R a t e



    3 8 4 0 H z



    3 8 4 0 H z



    G r e y  S c a l e



    1 2 - 1 6 B i t



    1 2 - 1 6 B i t



    Specification can be customized



    Mo d e l



    P 2 . 5 ( G O B )



    1 . 8 ( G O B )



    Pixel Pitc(mm)



    2.5



    1.86



    P i x e l   D e n s i ty



    1 6 0 0 0 0



    2 8 8 9 0 6



    Mo d u l e  S i z e ( Wx H x D )



    3 2 0 x 1 6 0 x 5 . 2 m m



    L E D  T y p e



    S M D 1 5 1 5



    S M D 1 2 1 2



    Mo d u l e   R e s o l u t i o n （  d o t s ）



    1 2 8 x 6 4



    1 7 2 x 8 6



    m o d u l e   a r r a n g e m e n t ( p e r   c a b i n e t )



    8x 6



    S c r e e n  S i z e   ( W x H )



    2 5 6 0 x 9 6 0



    C a b i n e t  S i z e ( Wx H x D )



    1 6 8 0 x 1 0 6 8 x 6 2 0 m m



    C a b i n e t  we i g h t







    C a b i n e t  R e s o l u t i o n ( d o t s )



    1 0 2 4 x 5 1 6



    1 3 7 6 x 5 1 6



    S ca n n i n g   Mo d e



    3 2 / s



    4 3 / s



    B e s t  V i e wi n g   D i s t a n c e ( m )



    ≥2.5



    ≥1.86



    B r i g h t n e s s



    6 0 0 N i t s



    6 0 0 N i t s



    R e fr e s h  R a t e



    3 8 4 0 H z



    3 8 4 0 H z



    G r e y  S c a l e



    1 2 - 1 6 B i t



    1 2 - 1 6 B i t



    Ma x . / A v g . P o we r Co n s u m p t i o n



    Ma x . 6 0 0W/ p cs , A v g . 2 0 0W/ p cs



    wo r k i n g   V o i t a g e ( i n p u t )



    A C 1 1 0 - 2 4 0V @ 5 0 / 6 0 H z



    O p e r a t i n g   T e m p e r a t u r e



    - 2 0 ~ 5 0 ， 1 0 % - 9 0 R H



    O p e ra te  S ys te m



    N o v a s t a r



    I P   R a t i n g



    I P 4 3







    Why, Choose HAFOND?

    From retail to command centers, our indoor led screen and indoor led signs combine brilliance, durability, and adaptability. Reshape your space with HAFOND’s innovation—where every pixel inspires!
